Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books

Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books

  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
  • Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
Automatic Notebook Binding Machine 5.2KW 380V/50HZ/60HZ/3Phase with 800-1800 PCS/hour Capacity for Notebooks and Exercise Books
Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: MAUFUNG
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $9,000-9,999
Kontak
Detil Deskripsi produk
Kekuatan: 5.2kw Voltase: 380V/50HZ/60HZ/3Fase
Dimensi: 2830*1500*1500mm Berat: 580KG
Ukuran kertas maks: 600*470mm Kecepatan kerja: 800-1800 kali/jam
Tekanan udara: 6-8pa Kekuatan kompresor udara: 1,5kw
Nilai Otomatis: Otomatis Jenis: Mesin Jahitan Otomatis & Kertas Lipat
Fungsi: Mesin Jahitan & Kertas Lipat Model no: MF-SFM470A
Catu Daya: 380V /50/60HZ 3 Fase Kecepatan menjahit: 500-1000 PC/jam
Jarak Jahit yang Dapat Disesuaikan: Ya
Menyoroti:

5.2KW Notebook Binding Machine

,

380V/50HZ/60HZ/3Phase Auto Stitching & Folding Paper Machine

,

800-1800 PCS/hour Book Binding Machine

Book Central Threading Folding Sewing Machine
Professional Book Binding Thread Central Machinery Pleating Sewing Machine
Contact: Whats App/WeChat: +86 137 1205 9458 | Email: maufung08@mfjx.net
Product Specifications
Model No MF-SFM470A
Power Supply 380V /50/60HZ 3Phase
Working Speed 800-1800 times/hour
Air Pressure 6-8pa
Max Paper Size 600*470mm
Power 5.2kw
Air Compressor 1.5kw (provide for oneself)
Machine Dimension 2830X1500X1500mm
Weight 580kg
Key Features
  • Working speed of 500-1000 pieces/hour
  • Adjustable sewing distance for flexible applications
  • Ideal for notebooks, brochures, and exercise books
  • High sensitivity FOS automatic sewing system - no foot switch required
Product Images

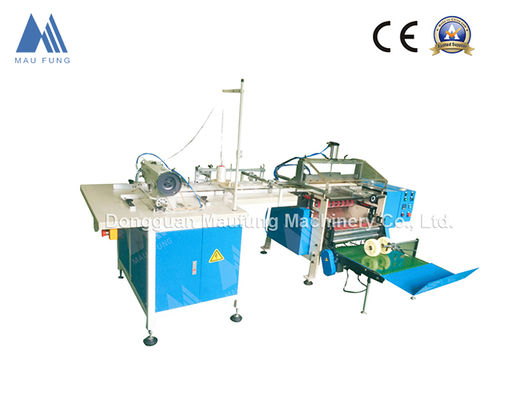

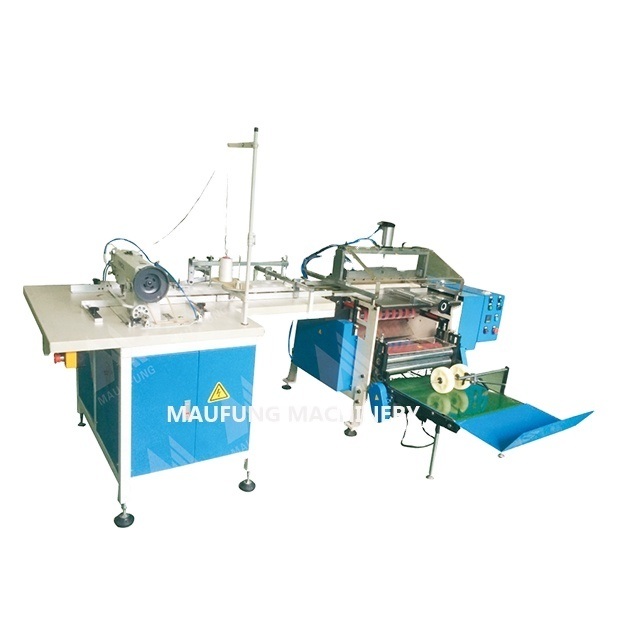

Book binding sewing machine front view Book binding sewing machine side view Book binding sewing machine operation view
Certifications
Machine certification document
Company Information
Manufacturing facility overview
Exhibition
Trade show exhibition booth
Frequently Asked Questions
Is your company a factory or trading company?
Our company is a factory.
What about the samples?
You can visit our factory if you'd like.
How to install the machine?
After-sales Service Provided:
  • Online support
  • Free spare parts
  • Field installation, commissioning and training
  • Field maintenance and repair service
  • Video technical support
What if the machine can't work?
We are available 24 hours online.
How long is the warranty period?
One year.
What are certificates of machine we have?
Our machines all have CE certificates and Certificates of origin.
